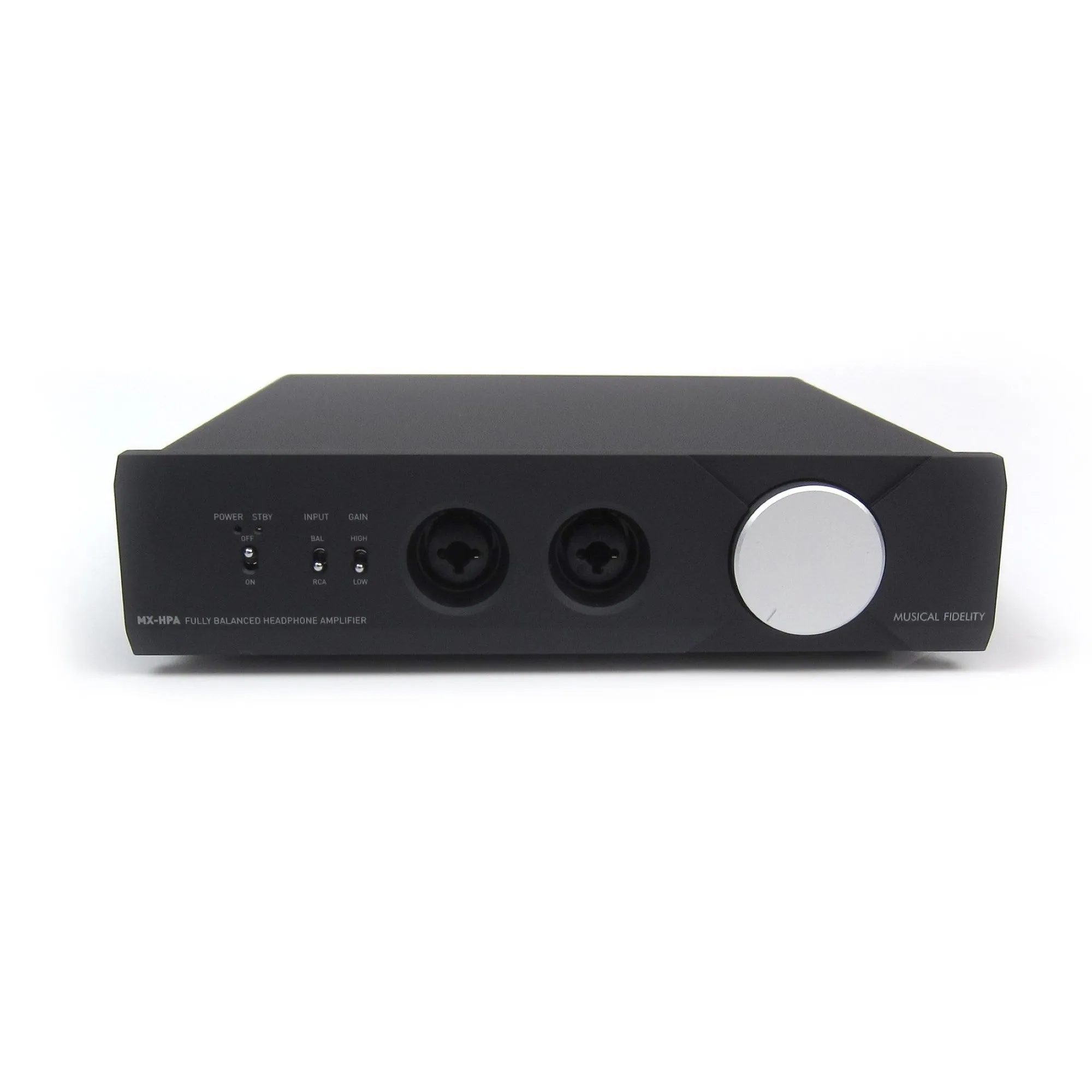

Musical Fidelity MX-HPA Headphone Amplifier Open Box

MX-HPA - Overview

Years of experience in making high quality headphone amps have been distilled into the design of the MX-HPA. As a result, this fully-balanced headphone amp offers an awe-inspiring listening experience.

The MX-HPA’s technical performance is stunning. Typically, distortion from 20 Hz to 40 kHz is less than 0.005%. Signal-to-noise ratio is better than 120dB (‘A’ weighted). Frequency response is ruler flat from 10 Hz to 20 kHz (-0.1dB).

The MX-HPA is capable of a short-term peak of 10 watts (for one cycle) and has two gain positions: 18dB (8X) and 24dB (15X). Inputs are either balanced or single-ended. The MX-HPA will automatically convert single-ended inputs to balanced. The MX-HPA is genuinely fully balanced from beginning to end.

MX-HPA In Brief

• Fully balanced, studio design, purist headphone amplifier
• Incredible technical performance
• Will drive any headphone with ease
• Wide bandwidth: 10Hz-40kHz at 0, -3dB
• Very low noise
• Very low distortion: < 0.003%, 20Hz to 20kHz
• Outstanding channel separation
• Powerful, muscular, output into 32 ohms
• Beautiful aesthetics and build quality

Specs

Output

• Power 1.8 Watts per channel into 8 Ohms (27dBW)
• Maximum output voltage 19 Volts RMS, 20Hz to 20 kHz
• Onset of clipping (54 Volts peak-to-peak) balanced

Line input

• THD N >0.005% typical, 20Hz to 20 kHz
• Signal / noise ratio >120dB ‘A’-weighted
• Input impedance 50k Ohms
• Frequency response 0, –0.1dB, 10Hz to 20 kHz
• Gain, LO position (volume max) 18db (8x)
• Gain, HI position (volume max) 24dB (15x)

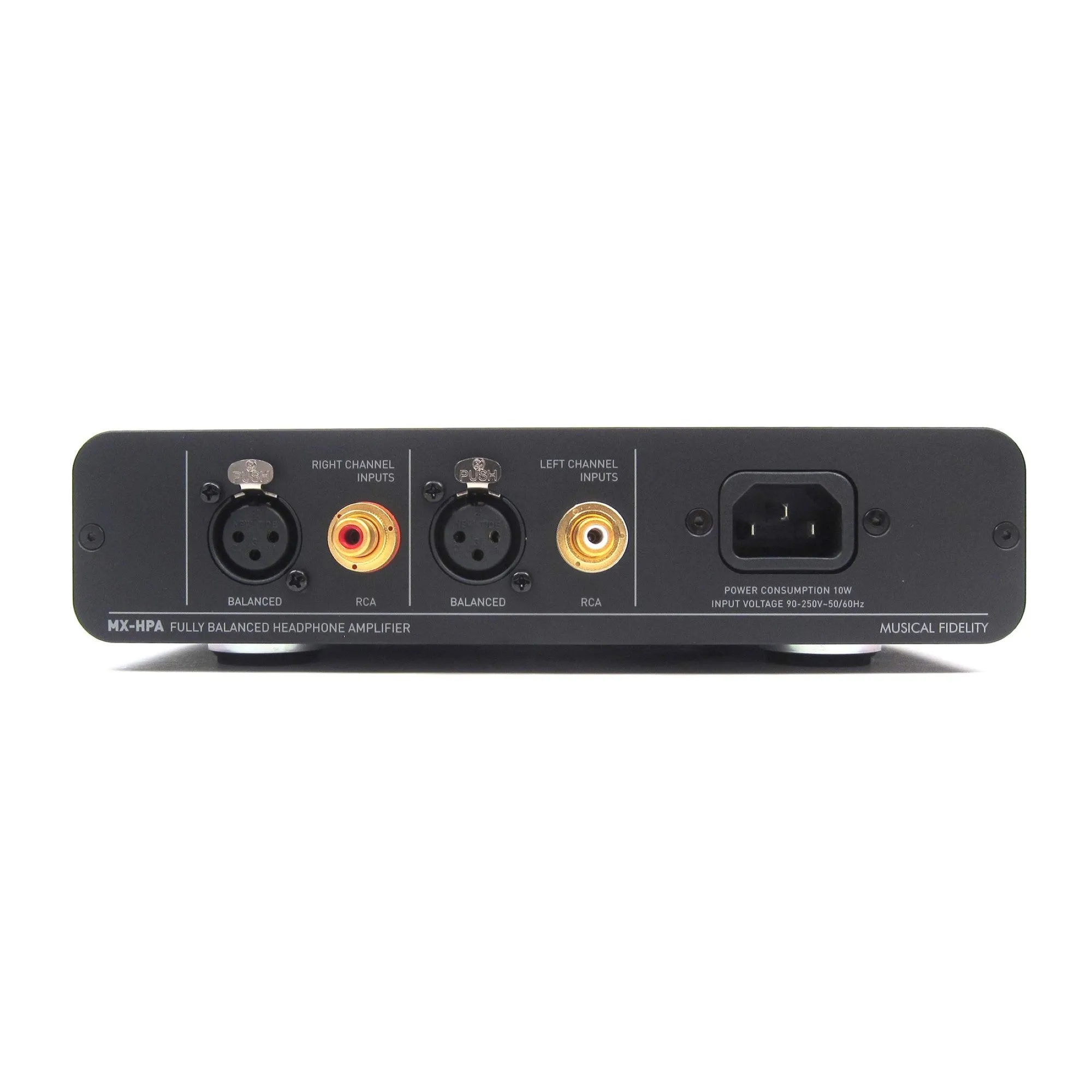

Connections

• Line level inputs
• 1 pair line level XLR (balanced) connectors
• 1 pairs line level RCA connectors
• Headphone outputs
• 1 pair 3-pin XLR/¼” stereo Jack combined sockets

Power requirement

• Mains voltages 90-250VAC 50-60Hz universal worldwide supply
• Consumption >0.25 Watts standby (Orange LED lit)
• 15 Watts maximum (Blue LED lit, full power output)

General

• Dimensions: 8-2/3" wide, 2" high (including feet), 9-1/2" deep (including connectors)
• Weight: 5 lbs

Musical Fidelity Warranty

• Electronics - 5 Years

• Disc Player / Electronics - 5 Years

• Disc Player / Mechanics - 2 Years
• Server - 5 Years
• Remote Control - 1 Year
