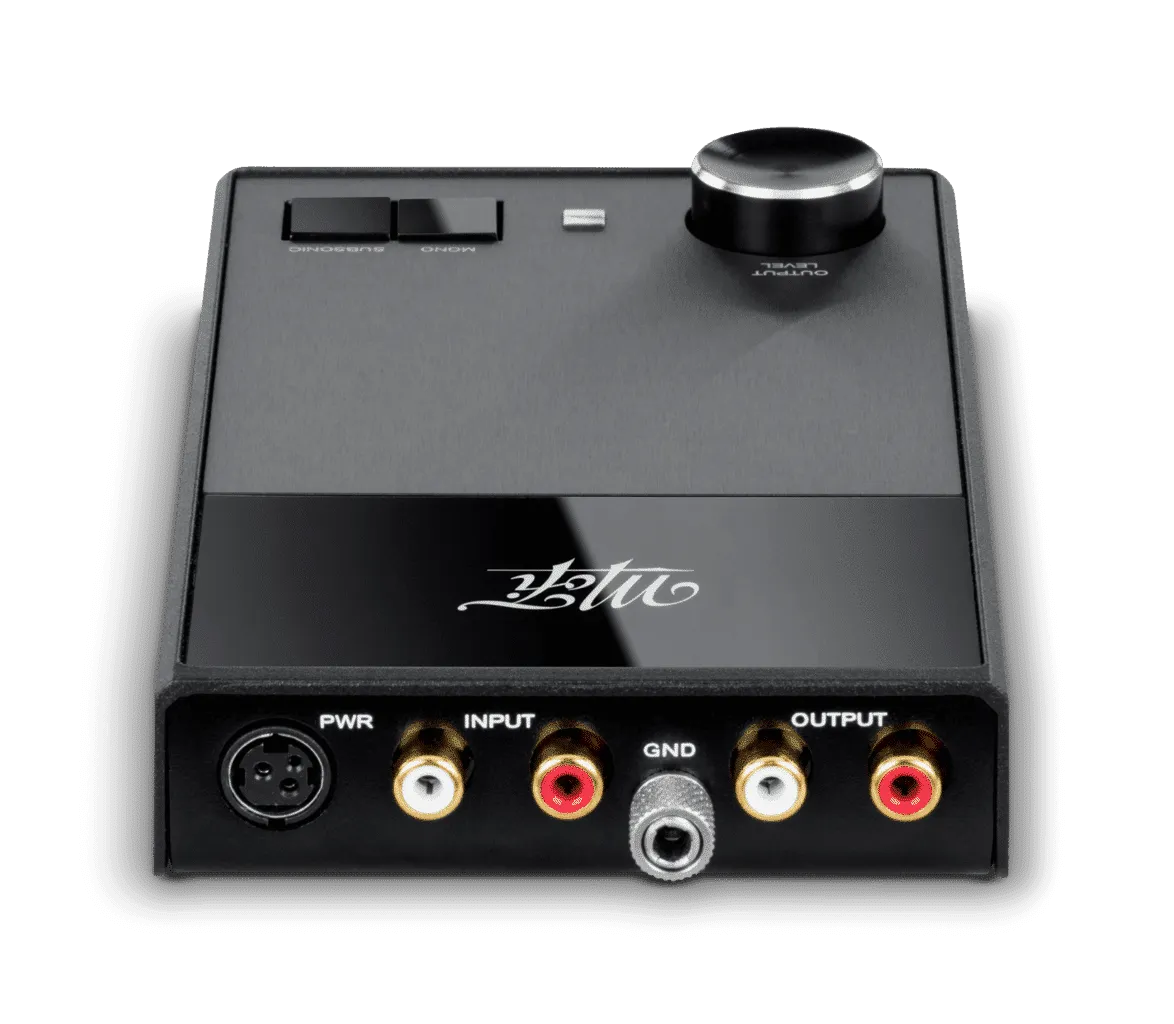

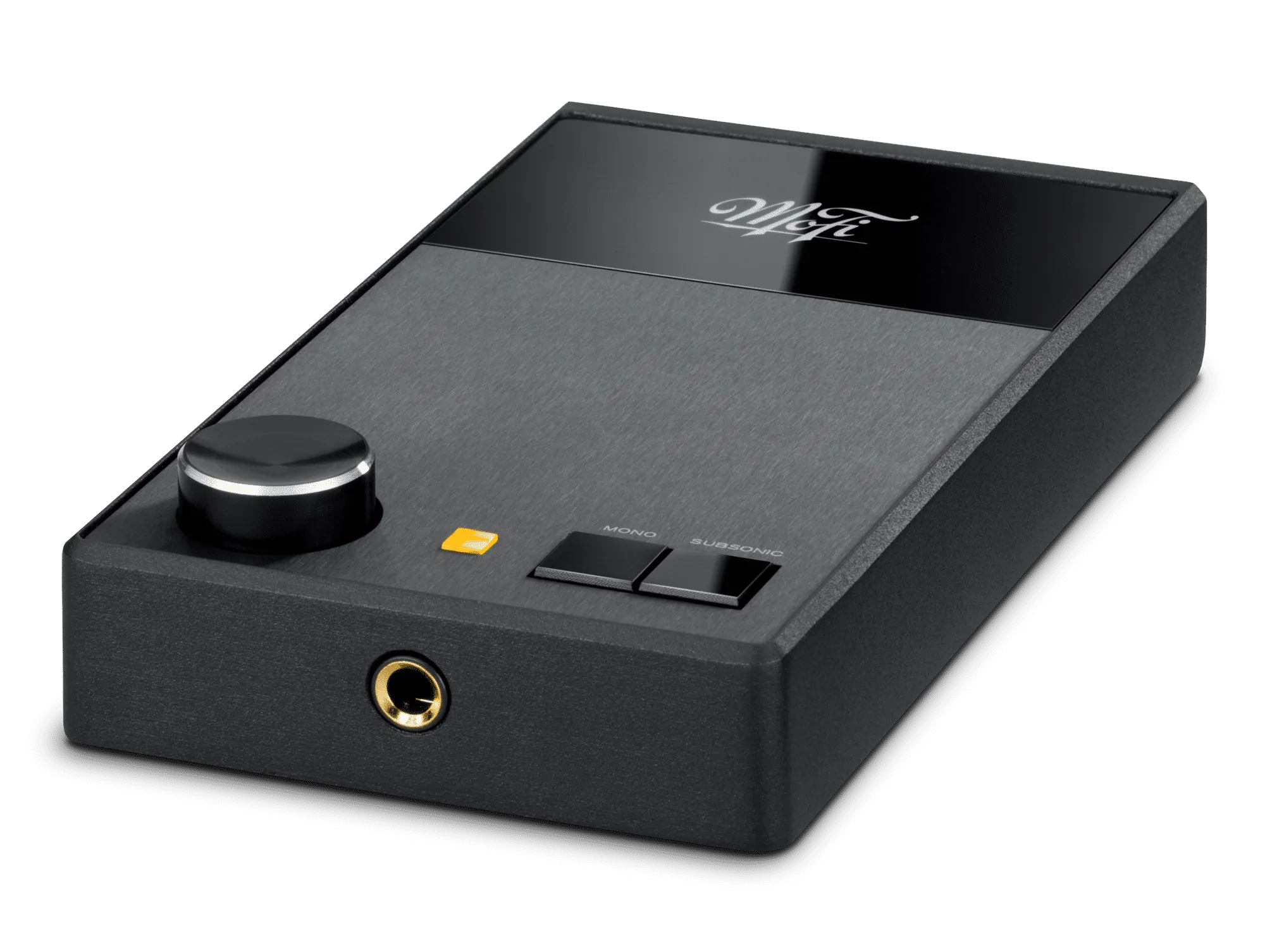

MoFi Electronics UltraPhono Phono Preamplifier Details :
UltraPhono replicates the wide bandwidth transparency Mobile Fidelity Sound Lab mastering engineers demand.
Tim De Paravicini, the designer responsible for the Mobile Fidelity Gain2™ Ultra Analog cutting system, assisted with the internal circuitry to ensure your analog system at home faithfully reproduces the music buried in the grooves of your LPs.
UltraPhono also includes an audiophile-quality Class A headphone amplifier for intimate listening enjoyment.
MoFi Electronics UltraPhono Phono Preamplifier Specifications :
Gain
Adjustable from 40dB - 66dB
THD< .006% (MM) / < .055% (MC)
Load Impedance (MM)
47,000 Ohms
Load Impedance (MC)
75, 100, 500, 1k, 10k, 47k Ohms
Input Capacitance
100pF
Adjustable from 40dB - 66dB
THD< .006% (MM) / < .055% (MC)
Load Impedance (MM)
47,000 Ohms
Load Impedance (MC)
75, 100, 500, 1k, 10k, 47k Ohms
Input Capacitance
100pF
HEADPHONE AMPLIFIERHeadphone Output
8V RMS Max, 62 Ohms, 1.5 w/ch
Volume Control
31 steps, 2dB per/step, 62dB range
Mute Switch
-90dB
Minimum Impedance
> 10 Ohms
8V RMS Max, 62 Ohms, 1.5 w/ch
Volume Control
31 steps, 2dB per/step, 62dB range
Mute Switch
-90dB
Minimum Impedance
> 10 Ohms
FEATURES
• Selectable gain for MM or MC 40dB, 46dB, 60dB, 66dB
• Adjustable loading 75Ω - 47kΩ
• Class A Headphone Amplifier
• Switchable Mono mode
• Subsonic filter
• External power supply
• Selectable gain for MM or MC 40dB, 46dB, 60dB, 66dB
• Adjustable loading 75Ω - 47kΩ
• Class A Headphone Amplifier
• Switchable Mono mode
• Subsonic filter
• External power supply
